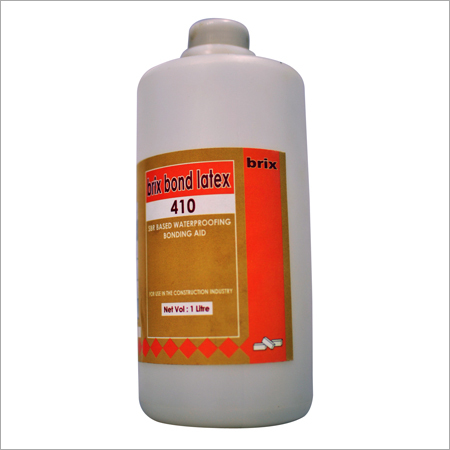

Waterproofing Bonding Aid
Product Code : 07
Brand Name : GHANATI PROJECTS
It is polymer based on styrene butadiene rubber, specially formulated for use with cement
For structural rehabilitations.
For waterproofing treatment.
For floor, screeds & topping.
For concrete repairs.
Advantages of brix bond latex system.
Excellent adhesive to reinforcement & concrete.
Increased flexural strength.
Increased tensile strength.
Compressive strength comparable to that of concrete.
Reduced water permeability.
Improved chemical resistance.
For brix bond latex & modified mortar.
Ph : 9.5
Specific gravity : 1.01
Freeze thaw stability : With stands at least 5 freeze thaw cycles, but storage in
covered areas above 0ºC recommended.
Anti Oxidant Yes
Minimum film forming temperature About 1ºC
DIRECTIONS FOR USE
for structural repairs and rehabilitation of concrete structures.
Reach the sound concrete and clean reinforcements with wire brush to remove loose scales.
Clean with jet of water to remove loose particles, dust etc.,
Apply passivator coat: 1 part cement: 1 part brix bond latex, coat on cleaned reinforcement
and allow it to dry for 2-3 hours.
Coverage : 7 to 8m² of reinforcement area per litre of brix bond latex.
Apply BOND COAT - 1 Part cement 1 part brix bond latex on entire surface that is to receive
subsequent brix bond latex modified mortar.
Coverage : 2 to 3m² per litre of brix bond latex.
Prepare polymer modified mortar : Cement 50 kg, 125kg zone II sand, 1- litre brix BOND LATEX,
Water 5 to 7 litre. Apply this by hand pressing over tacky bond coat.
Yield is 0.1m3 Above mix cover 10m3 area at 10mm thickness.
Moisture cure for 24 hours then allow drying out slowly.
1. Do not mix more mortar than can be used within 25 minutes.
2. Provide mortar thickness of about 10mm to 15mm absolute thickness of repair mortar over
3. Do not add more water than recommended.
1 Litre, 5 litre, 20 litre packing.
HEALTH & SAFETY
Use of rubber gloves, for hand pressing of brix bond latex mortar recommended.
24 months if stored in manufacturer’s sealed packs in a cool and dry place away from
moisture and heat. Agitate before use after prolonged storage.
brix products are manufactured under strict quality control measures as per manufacturing
specifications. If the behavior of the product is varying from the claims in the data sheets stop
the use of the product and contact the nearest brix representative.
